Chip switch diode

 Home  >  Product Center  >  Chip Diodes  >  Chip switch diode

Series overview

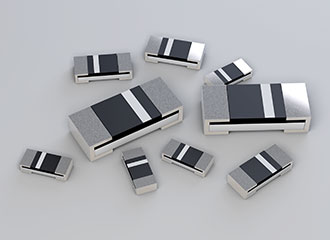

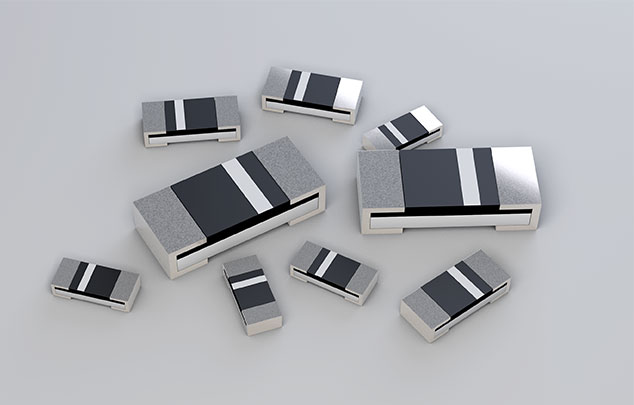

LIZ chip diode is a patented product using alumina ceramic substrate, which has the ability to resist high heat and mechanical stress, suitable for wave soldering and reflow soldering, and is suitable for circuit board miniaturization.

yageo_prod_application_icon.png Application
display more
product image Number of channels Spilled power mW Repeatable reverse peak voltage V(Max.) Repeated recovery current mA (Max.) Non-repetitive forward current mA (Max.) Non-repetitive forward current mA (Max.) Average rectified current mA (Max.) Forward voltage V(Max.) Leakage current nA(Max.) Leakage current uA(Max.) Leakage current uA(Max.) Capacitance pF(Max.) Reverse recovery time ns(Max.) Package Specifications(PDF)
CD4148WP CD4148WP
CD4148WP
1 400 75 300 500 1000 150 1.0 25 5 4 4 CD-1206
CD4148WSP CD4148WSP
CD4148WSP
1 200 75 300 500 1000 150 1.0 25 5 4 4 CD-0805
CD4148WTP CD4148WTP
CD4148WTP
1 200 75 200 400 800 100 1.0 25 5 4 4 CD-0603
CD4148WN CD4148WN
CD4148WN
1 400 100 300 1000 2000 150 1.0 25 0.5 4 4 CD-1206
CD4148WSN CD4148WSN
CD4148WSN
1 200 100 300 1000 2000 150 1.0 25 0.5 4 4 CD-0805
CD4148WTN CD4148WTN
CD4148WTN
1 200 90 225 500 1500 100 1.0 25 0.1 3 4 CD-0603
